Capabilities

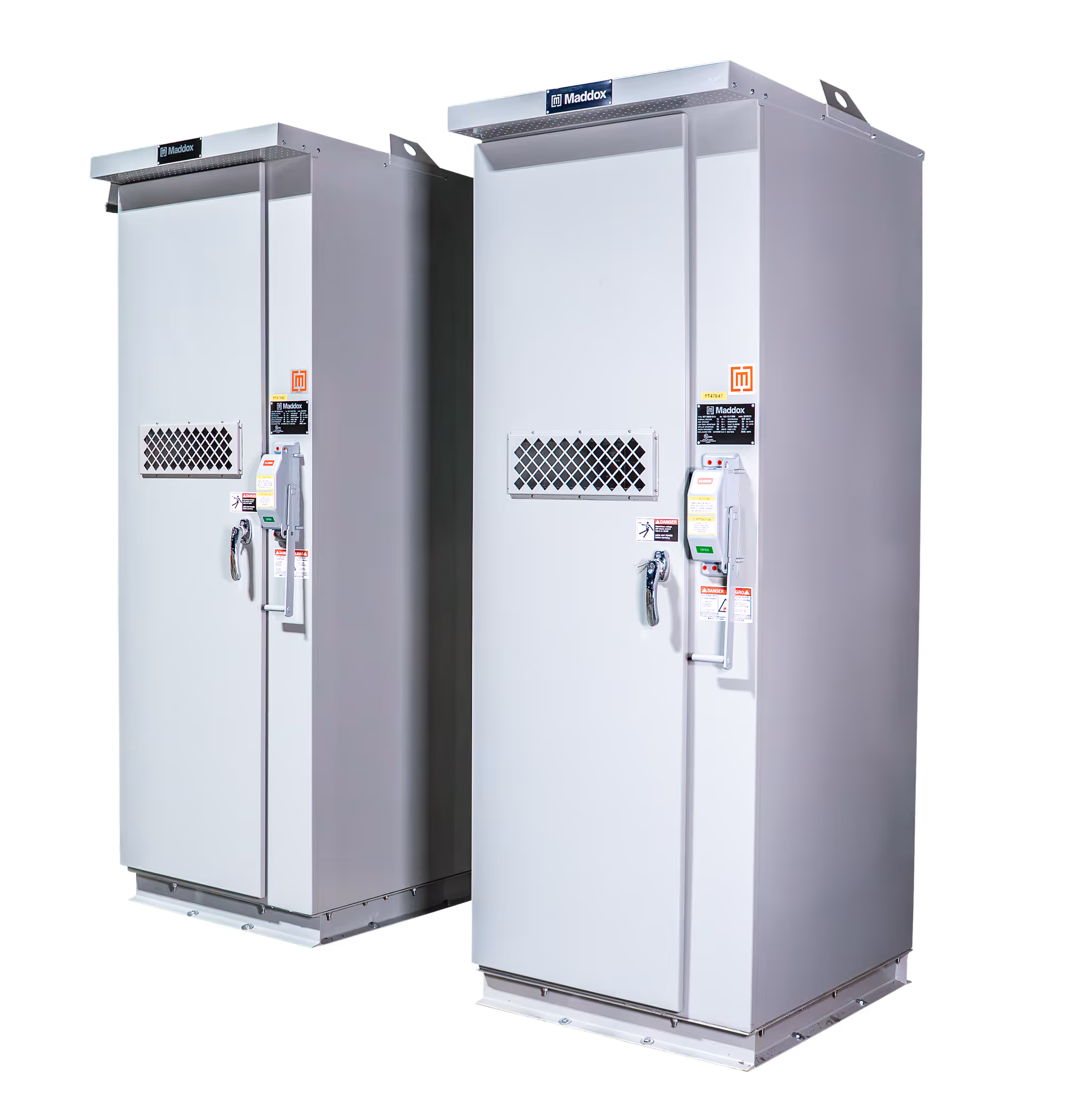

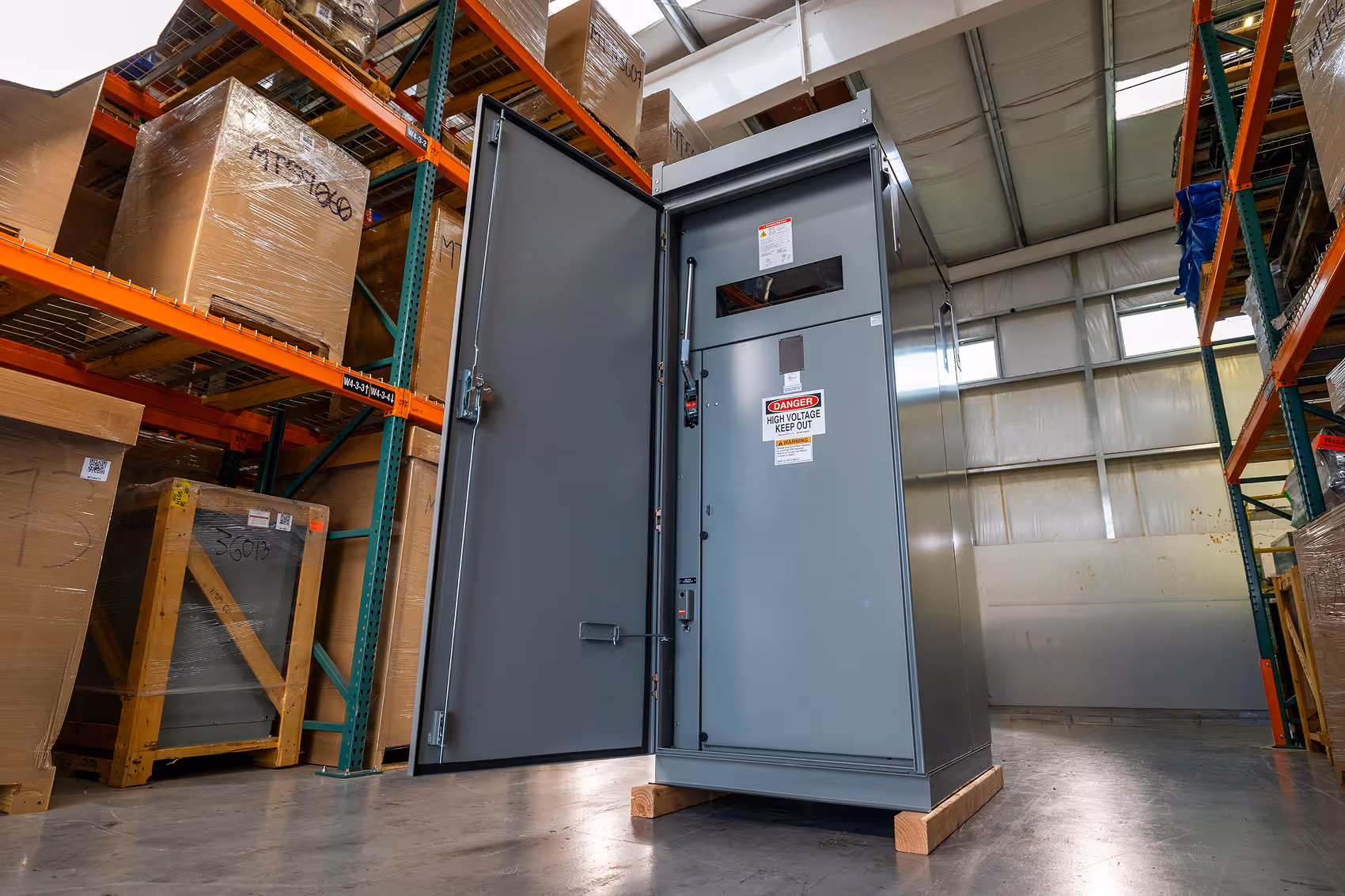

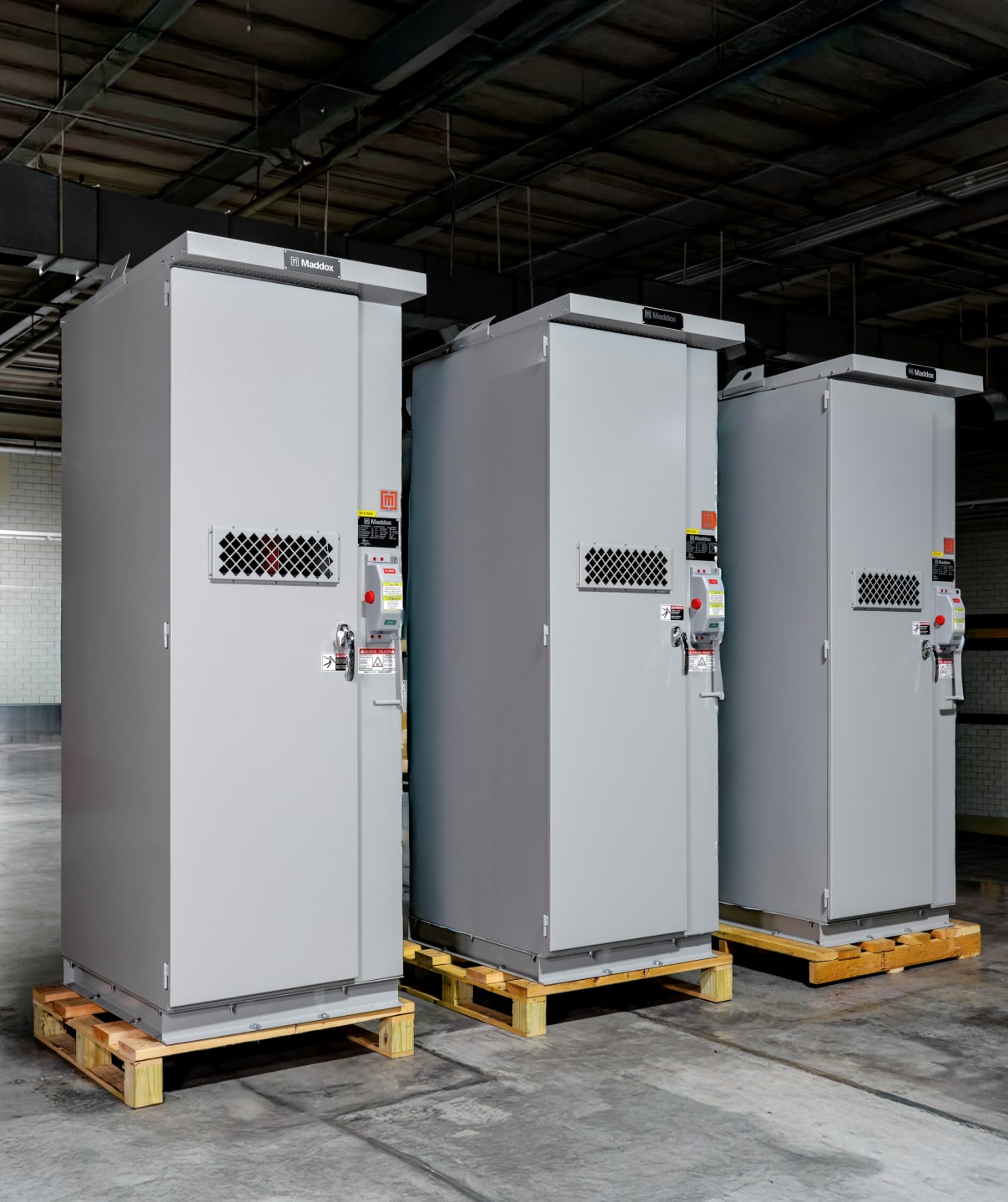

Maddox metal enclosed switchgear are designed, built, and tested in accordance with the highest industry standards. They feature current-limiting clip-lock fusing options (up to 600E for 5 kV applications and up to 300E for 15 kV applications) with an optional close-coupling to transformers.
Product Scope
- 5/15 kV General purpose switches
Technical Specs
Standard Specs
- 5 kV or 15 kV nominal voltage rating
- 600A main bus rating
- AmpsFault close asymmetrical: 40 kA
- Momentary switch closed asymmetrical: 40 kA
- 2 second short-time Current RMS symmetrical: 25 kA
- BIL: 95 kV

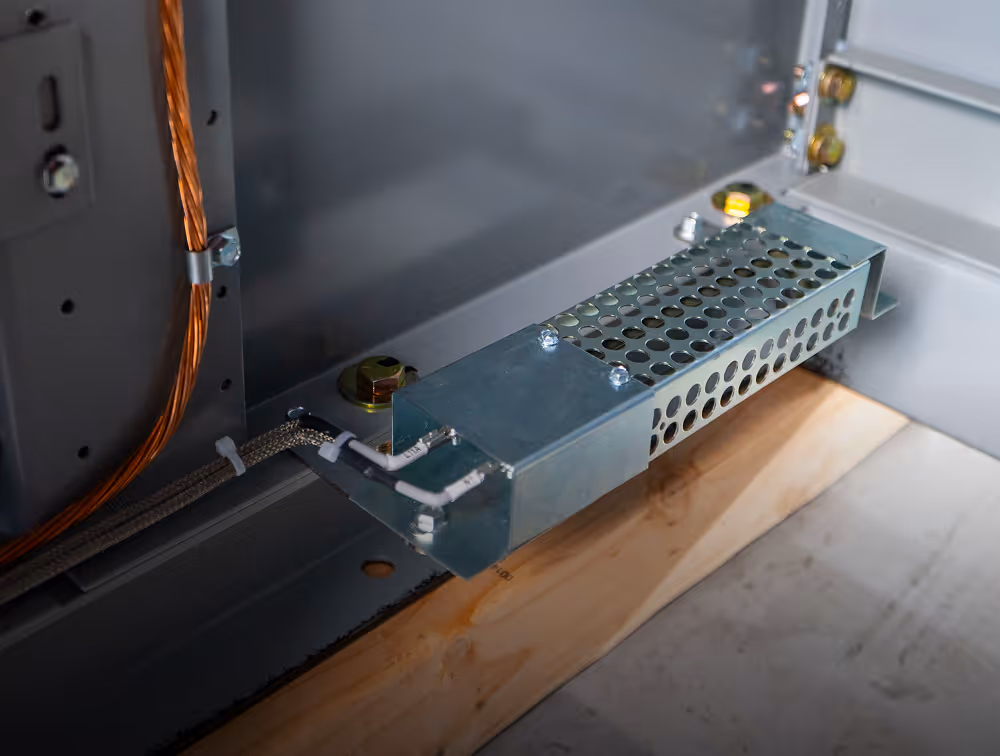

- Space heater circuit w/ thermostat (requires 120 VAC external power source)
- Provision for kirk key interlock

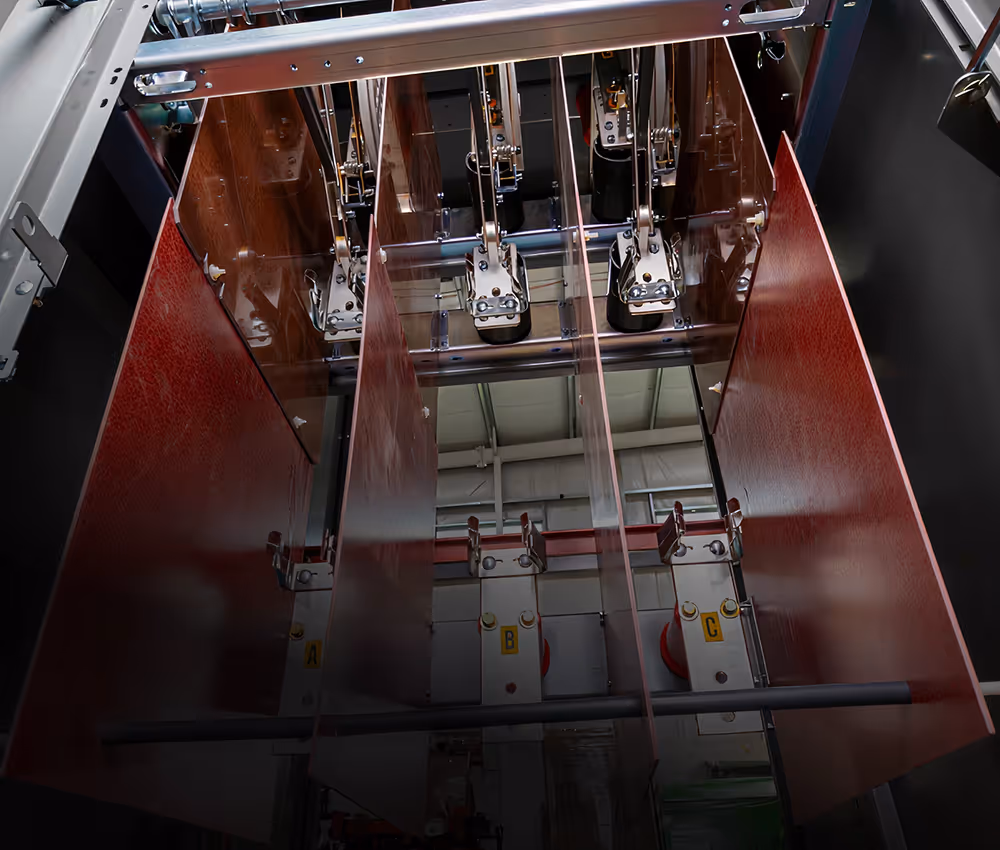

- Mechanism and contacts: copper-silver plated
- Frequency: 60 hertz
- Line terminals: ANSI segment 3
- Load terminals: ANSI segment 1

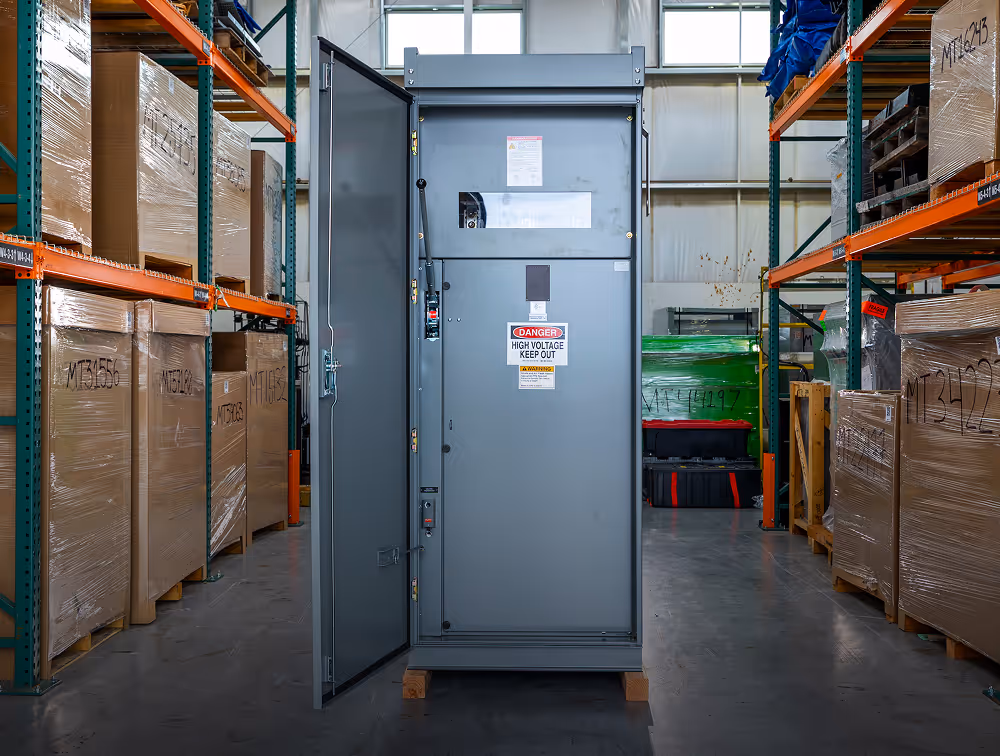

- Enclosure: NEMA 3R, outdoor/indoor
- 11-gauge steel construction
- ANSI 61 gray powder coating for a durable, lasting finish
Optional Features
- 27 kV designs
- Dry-contact kit (2 normally open, 2 normally closed)
- Customer metering

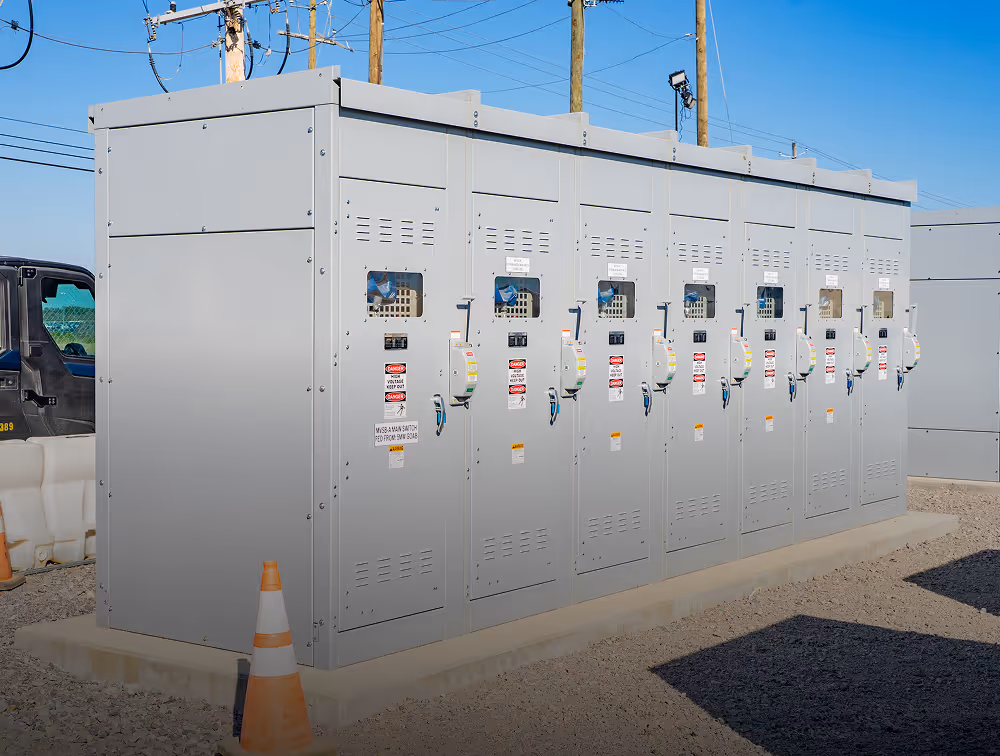

- Multi-bay lineups
- Surge arresters
- Convenience light
- Space heater switch
- Duplex receptacle
- Run back bus
